Vertical FFS packaging machine with multihead weigher

FOB Reference Price:Get Latest Price
$19,000.00 - $23,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Application:
Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Material:
Paper, Plastic
Type:
Other
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
ZHIEN
Model Number:
ZE-420
Power:
50/60HZ, 2.2KVA
Voltage:
220V
Weight:
850kg
Automatic Grade:
Automatic
Certification:
CE Certificate
Packaging Type:
Bags, Film, Foil, Pouch, Stand-up Pouch
Driven Type:
Pneumatic
Dimension(L*W*H):
(L) 1015 * (W) 1217 *(H) 1343mm
Packing Film:
Laminated film
Optional device:
Date coder printing /euro slot or hole punch / labels applicator
Function:
cutting,sealing,wrapping,printing
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
80 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export wooden case.
Port
Guangzhou,Foshan
Lead Time :
25-35 days
Video Description

Vertical FFS packaging machine with multihead weigher

.jpg





The main properties and characteristics of the organization

1 New design, beautiful appearance, reasonable structure, advanced technology.

2 Imported PLC computer control system, color touch screen, operation is convenient, intuitive and efficient.

3 Imported servo film transporting system, imports of color sensor, accurate positioning, excellent performance,beautiful packing.

4Automatic alarm and protection function of 4 kinds, minimize loss.

Pocket diversification, can provide a pillow shaped bags for customers, gusseted bags, hanging hole bag, bag etc.



Optional device:

Double membrane organization, inserted angle mechanism, automatic correction mechanism,punching device, even bag device.



Combination :

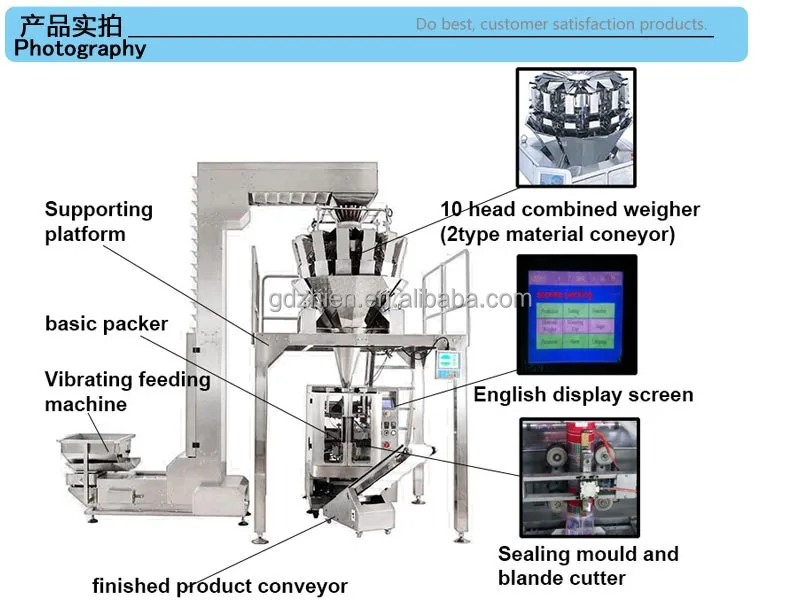

1,ZE  seirs main engine 2, ten series of ZE host computer combination balance 3, Z type material conveyer 4, platform 5, product conveyor.



Scope of application :

Suitable for all types of puffed food, candy, peanut, melon seeds, seed, popcorn, granular, strip, sheet object sautomatic weighing packaging.

Optional device:

1.Date coder.

2.Euro slot or hole punch.

3. Labels applicator



Technical specifications:

Model

ZE-420AZ

Film width

Max. 420mm

Bag length

80 ~ 300mm

Bag width

60~200mm

Film diameter

Max. 320mm

Packing speed

5 ~ 60bag/min

Measurement

150 ~ 1500ml

Film thickness

0.04 ~0.08mm

Power supply

220V, 50/60HZ, 2.2KVA

Machine size

(L)  1015 * (W) 1217 *(H) 1343mm

Weight

850kg



Model

ZE-520AZ

Film width

Max. 520mm

Bag length

80 ~ 350mm

Bag width

60~250mm

Film diameter

Max. 320mm

Packing speed

5 ~ 60bag/min

Measurement

150 ~ 2000ml

Film thickness

0.04 ~0.08mm

Power supply

220V, 50/60HZ, 2.2KVA

Machine size

(L) 1217 * (W)1015 * (H) 1343

Weight

850kg



The main properties and characteristics of the organization

1 New design, beautiful appearance, reasonable structure, advanced technology.

2 Imported PLC computer control system, color touch screen, operation is convenient, intuitive and efficient.

3 Imported servo film transporting system, imports of color sensor, accurate positioning, excellent performance,beautiful packing.

4Automatic alarm and protection function of 4 kinds, minimize loss.

Pocket diversification, can provide a pillow shaped bags for customers, gusseted bags, hanging hole bag, bag etc.



Optional device:

Double membrane organization, inserted angle mechanism, automatic correction mechanism,punching device, even bag device.



Combination :

1,ZE  seirs main engine 2, ten series of ZE host computer combination balance 3, Z type material conveyer 4, platform 5, product conveyor.



Scope of application :

Suitable for all types of puffed food, candy, peanut, melon seeds, seed, popcorn, granular, strip, sheet object sautomatic weighing packaging.

Optional device:

1.Date coder.

2.Euro slot or hole punch.

3. Labels applicator
