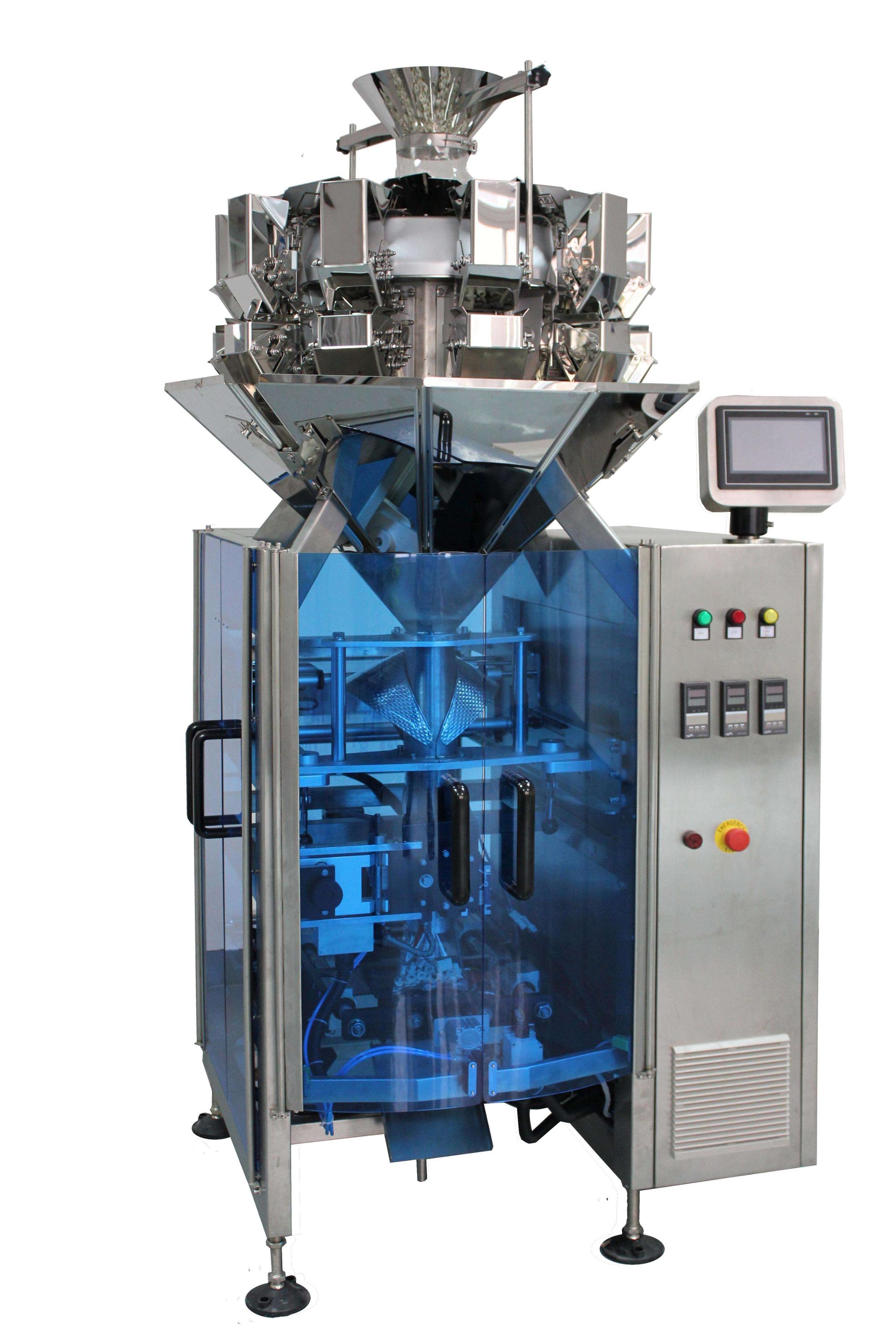

VFFS automatic azuki bean/ormosia/ red bean packing machine price

FOB Reference Price:Get Latest Price
$16,300.00 - $18,500.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ZE-520W
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Application:
Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Material:
Plastic
Type:
Multi-Function Packaging Machine
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
ZHIEN
Power:
3KW
Voltage:
220V 50/60Hz
Function:
Filling, Sealing
Automatic Grade:
Automatic
Certification:
CE Certification
Packaging Type:
Bags, Film, Foil, Pouch, Stand-up Pouch
Driven Type:
Pneumatic
Dimension(L*W*H):
1350*1000*1450mm
PLC:
Delta or Siemens
Machine material:
Stainless Steel .carbon Steel .etc
Film material:
OPP, CPP, BOPP, PET, ect
Film thickness:
0.04-0.10mm
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
80 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden cases
Port
Foshan, GuangZhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description




VFFS automatic azuki bean/ormosia/ red bean packing machine price

surpersep-gill

timg (2).jpg

                                                                     Technical datas
ModelZE-420ZE-520ZE-720
Film widthMax.420mmMax.520mmMax.720mm
Bag length60-300mm60-400mm60-450mm
Bag width80-200mm80-250mm100-350mm
Measuring rangeMax.1200mlMax.2000mlMax.5000ml
Packing speed5-60 bags / min5-55 bags / min5-45 bags / min



Application

Suit for packing puffed food, dry fruit, dried nuts, grain, dired apricots, dired prunes, plastic parts, screws,

jam filled cookies, azuki bean, ormosia, red bean  ect.

The machine automatically finishes the process of filling, bag forming, sealing and date printing.



Main Features

A. Double transducer control, flexible bag length cutting.
B. Human-machine operation, convenient and quick parameter setting.
C. Self-diagnostic function, failure can be clearly displayed.
D. High sensitivity optical electric color mark tracking enable accurate bag sealing and cutting.
E. Separate PID temperature controller, suitable for various packing materials.
F. Simple driving system, reliable performance and convenient maintenance.
G. All the controls are achieved by software, convenient for function adjusting and upgrading.



Detailed Images

.jpg

Electric fitting list

NameBrandOrigin
Touch screenDelta / SiemensTaiwan / Germany
PLCDelta / SiemensTaiwan / Germany
Servo motorDeltaTaiwan
CylinderAirtacTaiwan
Optical photo cellOtnyxKorea
Tempreture controllerAISETChina
Solid-state relayYangMingTaiwan
Intermediate relayOmronJapan



Bag style and samples





RFQ

Q1: How to find a Packing machine suitable for my product?

Tell us about your product details and packing requirements.

1. What kind of product you would liek to pack?

2. The bag/sachet/pouch size of you need for the product packing ( the length, width).

3. The weigh of each pack you need.

4. You requirement for the machines and the bag style.



Q2: Is engineer available to serve oversea?

Yes, but the travel fee is responsible by you.

In order to save your cost, we will send you a video of full details machine installation and assist you till the end.



Q3. How can we make sure about the machine quality after placking the order?

Before delivery, we will send you the pictures and videos for you to check the machine quality.

And also you can arrange for quality checking by yourself or by your contacts in China.



Q4. We are afraid you won't send us the machine after we send you the money?

We have our business license and certificate. And it is available for us to use alibaba trade assurance service,

guarantee your money, and guarantee your machine's on-time delivery and machine quality.



Q5.  Can you explain me the whole transaction process ?

1.Sign the Contact

2.Arrange 30% deposit to our factory

3.Factory arrange production

4.Testing & detecting the machine before shipping

5.Inspected by customer or third agency through online or site test.

6.Arrange the balance payment before shipment.








timg (1).jpg



Welcome to contact us for more infomation.
