High accuracy 100g 250g potato chips snack pouch filling packing machine with multi heads weigher

FOB Reference Price:Get Latest Price
$6,500.00 - $18,000.00 / Set | 1 Set/Sets (Min. Order)
Power:
2.2KW
Model Number:
ZE-420w
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Application:
Food, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Material:
Plastic, Paper
Type:
Multi-Function Packaging Machine
Condition:
New
After-sales Service Provided:
Video technical support, Online support
Brand Name:
Zhien
Voltage:
110v/220v/380v, 220/50Hz, 110V/50Hz, 380v/50Hz
Function:
Filling, Sealing, Filling, Sealing, Auto-Weight-Form-Fill-Seal
Automatic Grade:
Automatic
Certification:
CE
Packaging Type:
Stand-up Pouch, Bags, Pouch
Driven Type:
Electric
Dimension(L*W*H):
L)1800* W)1800* H)1800~2000
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms, Energy & Mining
Type of machines:
Multi-Function Packaging Machine, Other
Capacity:
5-50kg/bag
Max Film Width:
420MM
Weight can pack:
100g-2kg(Depends on material)
Dimension(L*W*H)::
(L)1488*(W)1080*(H)1490mm
Material:
Stainless Steel/Painted Steel

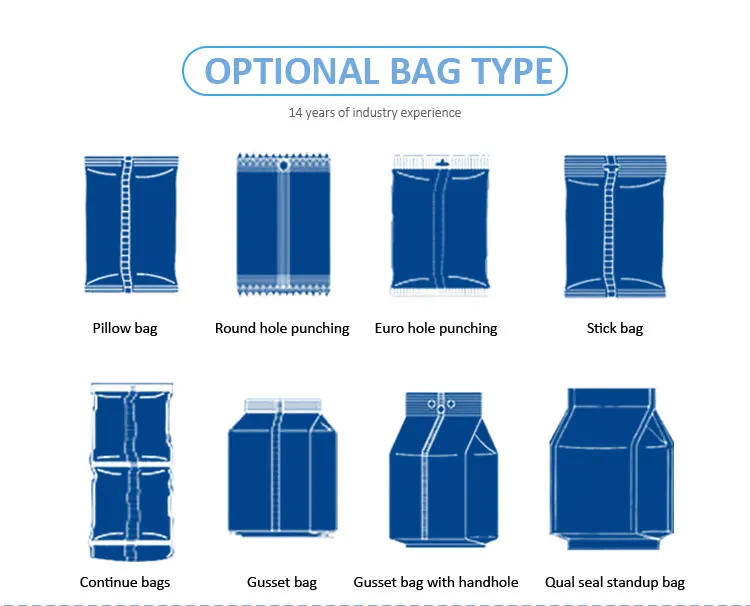

Bag Type:
Pillow Bag/Gusset Bag
Bag size can make:
W:80-250mm L:30-400mm
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
1) Dedust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Shipping mark on the cases
Any special requirements can be discussed.
Port
GuangZhou / Shenzhen / Shanghai
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 45 To be negotiated
Video Description

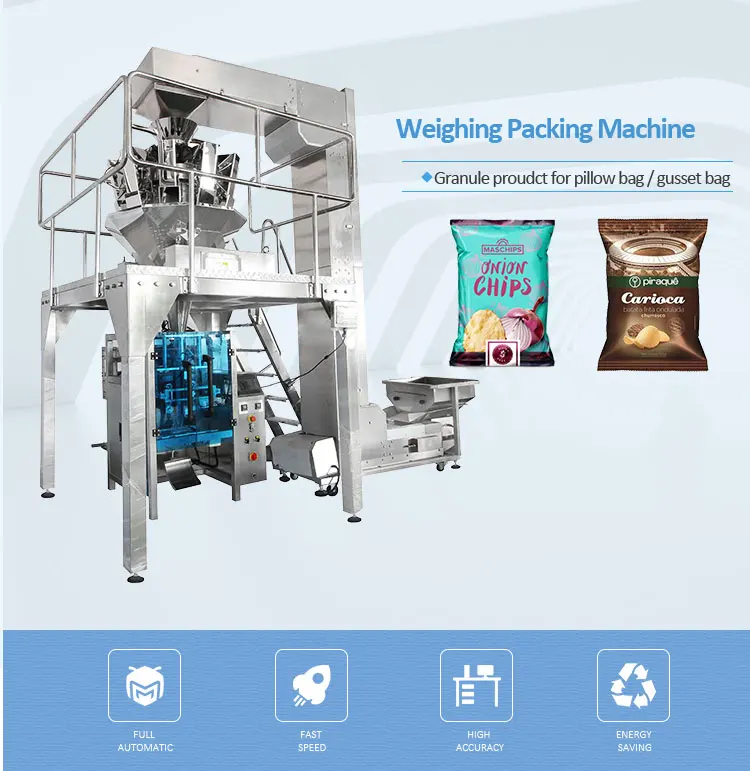

>>High accuracy 100g 250g potato chips snack pouch filling packing machine with multi heads weigher

It is suitable for all kinds of stuffs packing, such as chips, candies, sugar, salt, rice, beans, nuts, coffee beans, jelly, macaroni, frozen food, pet food, screw and small parts.




Main Features:

1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintenance.

SPECIFICATIONS FOR POTATO CHIPS PACKING MACHINE
Model
ZE-420W
ZE-520W
ZE-720W
Film Width
Max.420MM
Max.520MM
Max.720MM
Bag Length
80-300MM
80-350MM
100-500MM
Bag Width
60-200MM
100-250MM
180-350MM
Film Roll Diameter
Max.320MM
Max.320MM
Max.320MM
Film Thickness
0.04-0.12MM
0.04-0.12MM
0.04-0.12MM
Packing Speed
5-60Bag/Min
5-60Bag/Min
5-55Bag/Min
Power
220V 50/60HZ 2KW
220V 50/60HZ 3KW
220V 50/60HZ 3KW
Machine Size(MM)
(L)1217* (W)1015*(H)1343
(L)1488* (W)1080*(H)1490
(L)1780* (W)1350*(H)2050
Machine Weight
About 650KG
About 680KG
About 750KG
Option Device
air filling device, date printer, hole-punching device, link bag device.


Below Machine Maybe You Will like it, Just Click It to Know More.

weighing RP

>>Our Service:

1. Consultation, technical support, visiting service is available.



2. Spare parts offering that enough for one year, if parts break because of quality within one year. Enough spare parts in stock can send immediately once request.



3. Warranty at least 1 year from the date of completion of the commissioning.



4. Manual provided in English as well as 2000+ concrete operation videos to make sure our machine to serve for our clients better.



5. If it is necessary we could provide on-site service, the customer will need to provide room, board, round-trip transportation and a normal $100 daily subsidy per person.




>>FAQ:

Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would liek to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.

Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q3. How can we make sure about the machine quality after placking the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.

Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.

Q5. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.



Q6: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
