Automatic tea bag making machine, small bag filling machine for small business

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    $11,900.00
  • 5 - 9 Sets
    $10,900.00
  • >=10 Sets
    $9,900.00
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Machine Type:
Bag Forming Machine
Bag Type:
Filter Bag
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Brand Name:
ZHIEN
Voltage:
110v/220v/380v
Weight:
550kg
Certification:
CE
Computerized:
Yes
Material:
Paper
Dimension(L*W*H):
1250*700*1800mm
Applicable Industries:
Garment Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops, Advertising Company
Key Selling Points:
Easy to Operate
Application:
Food Packaging
Type:
Multi-Function Packaging Machine
Function:
tea bag making
Feature:
bag Forming
measuring:
Volumetric cups
bag type:

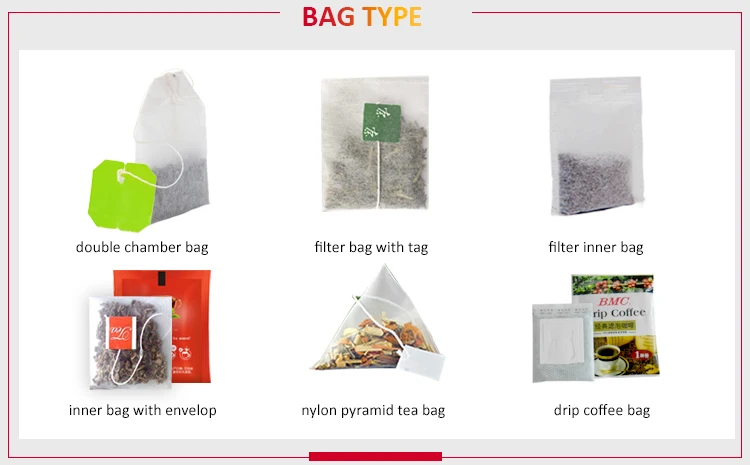

inner and outer bag, inner bag
Usage:
Sealing Packing Plastic Bag
Automatic grade:
Automatic
Speed:
40-60 bags/min
Keywords:
tea bag making machine
Product Certification certification
CE Certified.
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details

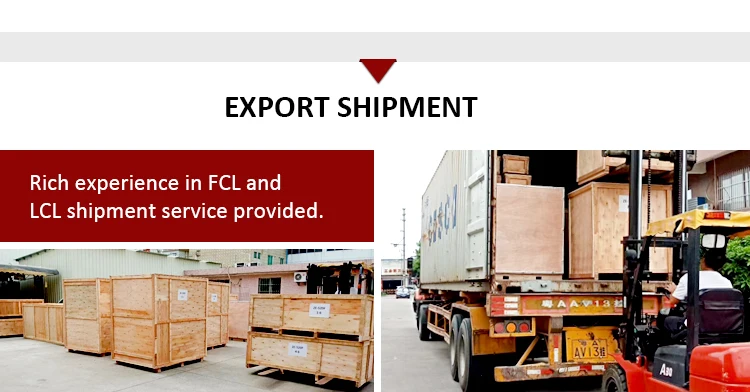

exported wooden case for tea bag making machine.
Port
GuangZhou / Shenzhen / Shanghai
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 45 To be negotiated
Video Description

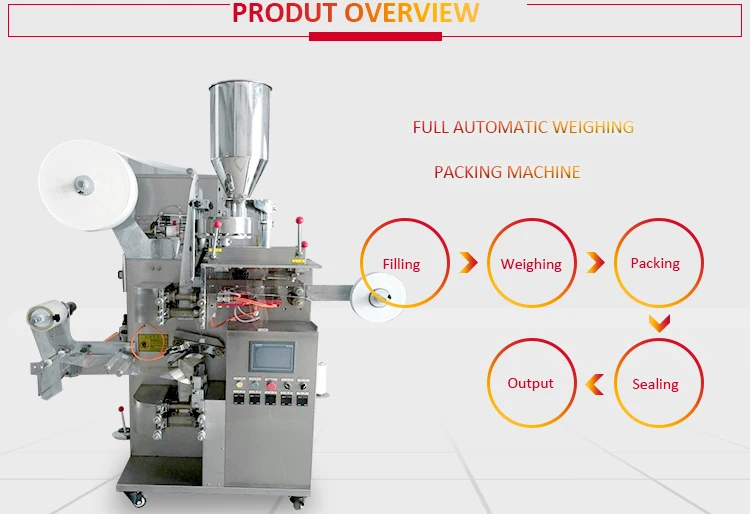

Automatic Tea Bag Making Machine, Small Bag Filling Machine for Small Business


1 (1).jpg1 (2).jpg

Product Application:
It is suitable for double chamber tea bag products packing, such as broken tea, coffee, ginseng essence, diet tea, health care tea, medicinal tea and herbal tea, etc.




Tea bag Making Machine Technical Data
Name
Tea Bag Making Machine
Model
ZE-TIO
Measuring
Volumetric cup filler
Filling Range
3-15ml
Packing Speed
40-60 bags/min
Tag Size
L:20-24mm,W:40-55mm
Thread Length
155mm
Inner Bag Size
L:50-70mm,W:40-80mm
Outer Bag Size
L:70-120mm,W:60-90mm
Power
220V,50Hz,3.7KW
Packaging MaterialPaper/plastic,plastic/plastic,plastic/aluminum/plastic,paper/aluminum/plastic,tea filter paper,thread,tag paper.



Detailed Images:

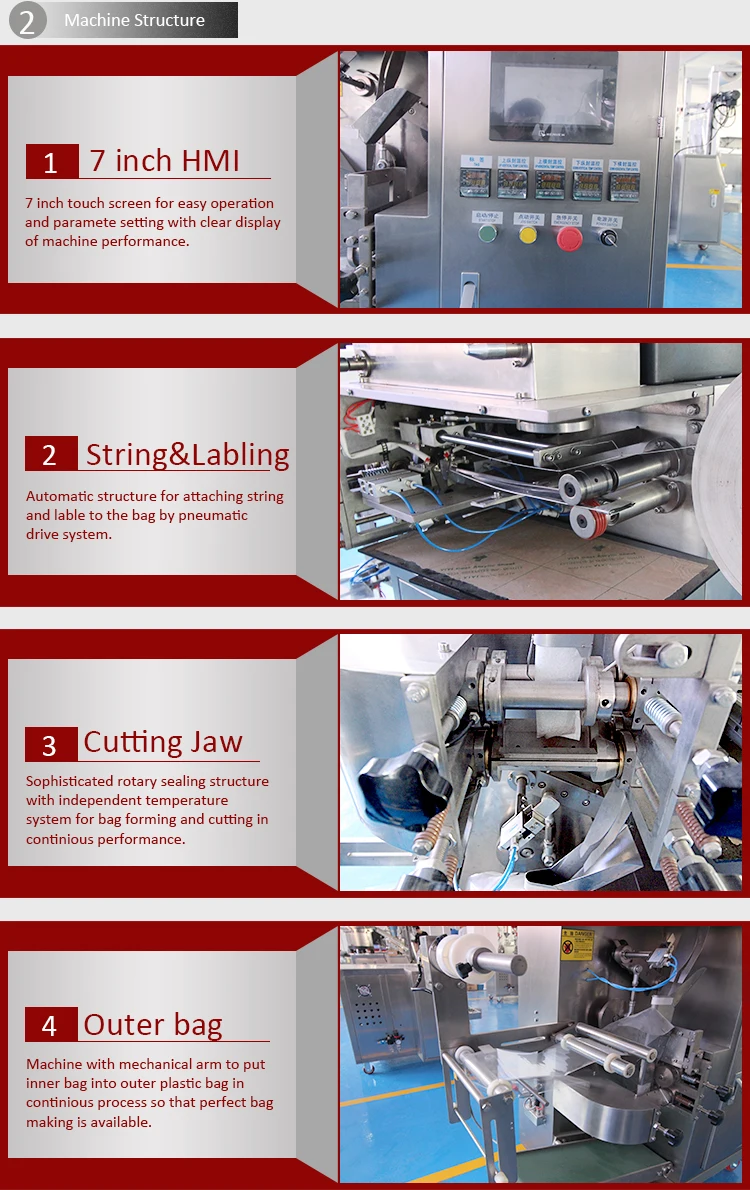

Inner and outer bag tea packing machine
This machine is an automatic multi-functional tea bag packaging equipment with a new heat sealing type.

The inner bag and outer bag forming is finished at the same time, avoid direct contact with the packing material
and improve working efficiency. Inner bag is made of filter paper with thread and tag attached, and outer bag is made of composite paper.

The biggest advantage is: tag attaching and outer bag making can adopt photoelectric positioning.

1 (3).jpg

Features:
The packaging pouches with drawing line and tag. The process of bag making, measuring, filling, sealing, cutting and counting can be done automatically.
1.All stainless steel cover meets to GMP standard.
2.Equipped with antipollution and dustproof device

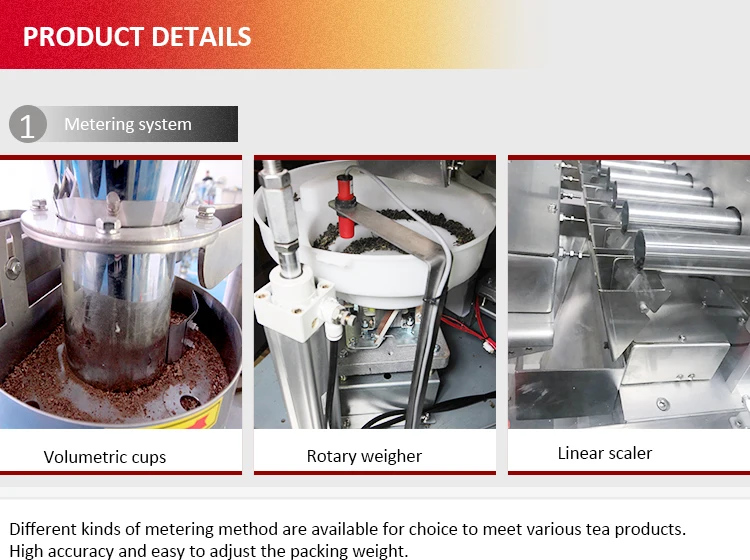

3.Adjustable measuring cup-adjust the measuring under the case of downtime.

4.Sealing part: roller spend process is special designed and the effect of sealing is very well.

5.The function of automatic counting is available for customers to pack.
6.At the ends of cross sealed of inner and outer bags have oiling holes, regular oil guarantees that the machine operate lubricating, adequate lubrication can reduce the failure rate and improve the service life of the machine.
7.The maximum advantage of this machine is that the feeding structure inside the machine beyond the traditonal feeding form, greatly improve the rates of the threads and tags which make the the rates of threads and pre-print on about 98-99%.

1 (4).jpg1 (5).jpg1 (6).jpg

Manufacturer based

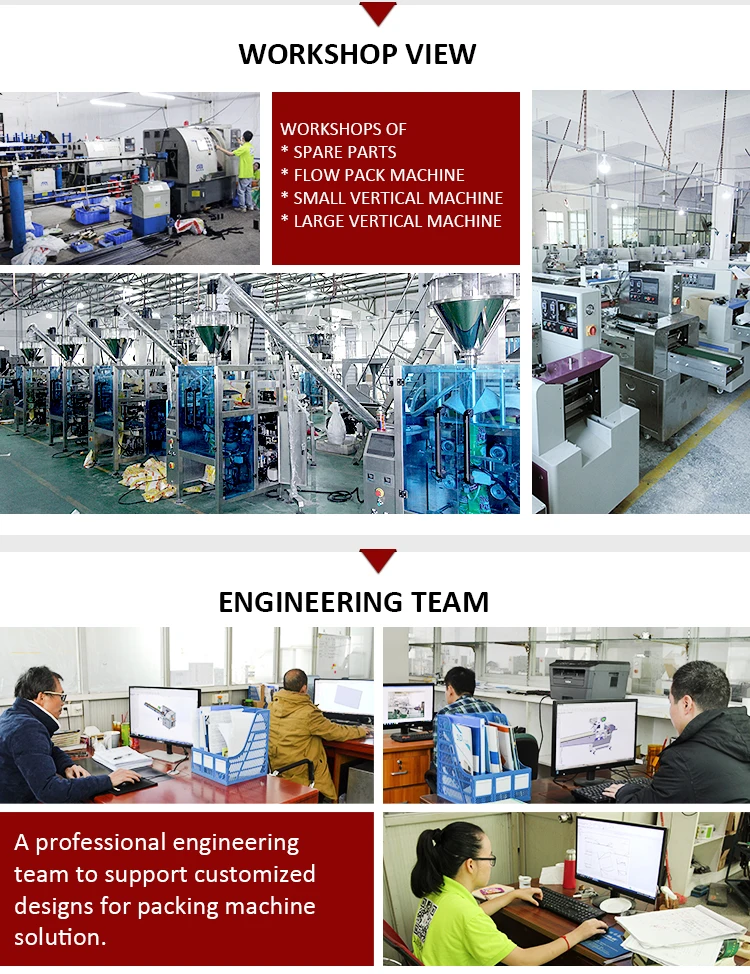

We are a professional manufacturer engaged in the research and development of packaging machinery more than 10 years experience.We make sure to offer the best service for our customers!

ODM service
We can produce packaging machines according to your need.

OEM service
Your logo can be set in touch screen program or with a nameplate on machines.

Click To Contact Us !

Tea bag-Rp



1 (7).jpg

FOSHAN ZHIEN MACHINERY CO.,LTD. enjoys a good geographical loaction, which near GuangZhou International Airport. With number of years's experience in solving packaging solutions, ZHIEN has evolved into a major player in manufacturing packing machines in China.

Any quesiton, pls click here to contact us.

1 (8).jpg1 (9).jpg1 (10).jpg1 (11).jpg
